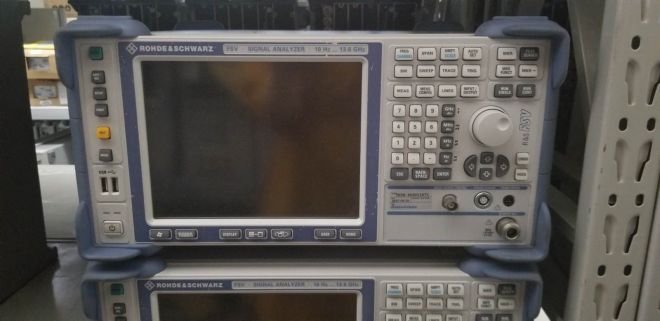

儀器名稱(chēng): R&S FSV13 10Hz-13.6GHz 頻譜分析儀 徐經(jīng)理 18912657535 儀器型號(hào): FSV13 儀器品牌: 羅德與施瓦茨 儀器指標(biāo): 10Hz-13.6GHz
- Frequency range up to 3.6 GHz/7 GHz/13.6 GHz/30 GHz
- 40 MHz analysis bandwidth
- 0.4 dB level measurement uncertainty up to 7 GHz
- Analysis software for GSM/EDGE, WCDMA/HSPA, LTE, WiMAX?, WLAN, analog modulation methods
- Support of power sensors from the R&S®NRP family along with extensive power measurement functions
- Marker and trace functions
- Easy on-site upgrading with options
- –110 dBc/Hz phase noise at 10 kHz frequency offset
- +15 dBm third order intercept (TOI)
- Displayed average noise level (DANL) in 1 Hz bandwidth: –155 dBm at 1 GHz, –147 dBm at 30 GHz
- Customized test routines for production applications
- Efficient remote-control operationTouch screen operation
- Removable hard drive for applications where security is a concern
